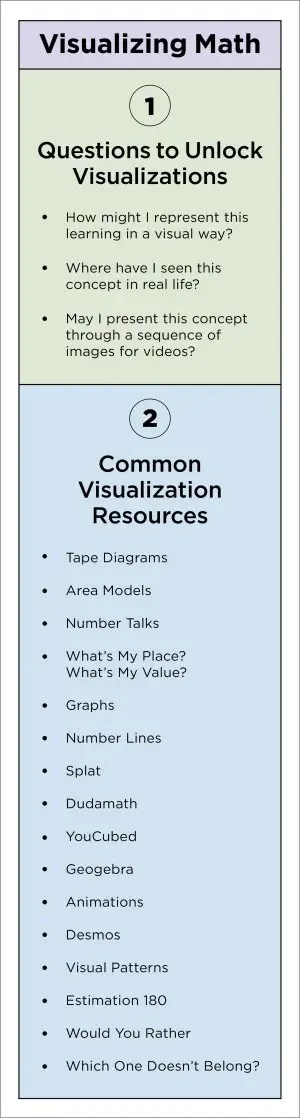

Building conceptual understanding is essential in A-Level maths education. The role of visualisation in A-Level maths cannot be overstated, as it enables students to grasp complex concepts more effectively. Through multiple representations in maths, learners can engage with problems dynamically, using tools such as dynamic geometry software to enhance their comprehension. Visualising mathematical concepts not only aids in the understanding of abstract theories but also supports graphical interpretations of calculus, which are crucial for mastering advanced topics. By employing visualisation techniques, educators can create a richer learning environment that fosters deeper understanding and retention of mathematical principles. This article explores how visualisation can significantly impact students’ conceptual understanding in A-Level maths, providing practical insights and strategies for teachers.
A strong hypothesis in A-Level mathematics is that visualisation strengthens conceptual understanding. It does so by linking graphs, symbols and language into one coherent picture. This approach reduces rote learning and supports meaningful reasoning.
Evidence from classroom practice backs this claim. When students sketch functions and annotate features, they see structure quickly. Symbolic manipulation then gains purpose, rather than feeling like an abstract routine.
Consider differentiation as an example. A gradient function becomes clearer when students connect a curve’s steepness to algebraic rules. Verbal explanations, such as “rate of change”, then anchor the idea in everyday meaning.
The same pattern appears in integration. Area under a curve is easier to grasp with shaded regions and clear axes. Symbolic antiderivatives make sense when tied to accumulation and units in context.
Visualisation in A-Level maths also helps students switch between representations with confidence. A graph can suggest a factor, while a factor predicts intercepts. Short verbal justifications then test whether the connection is understood.
This integration supports problem-solving under exam pressure. Students can sanity-check answers by comparing symbolic results with expected graphical behaviour. They are less likely to accept impossible values or incorrect signs.
The conclusion is that visualisation improves conceptual understanding by unifying representation types. When graphical, symbolic and verbal forms reinforce each other, misconceptions surface faster. Students build durable knowledge that transfers to unfamiliar questions.
Discover a world of fun and engaging math activities for your little ones by visiting our community page here and explore the ultimate guide for parents to make math enjoyable at home here!
Dual Coding Theory explains why diagrams and words together strengthen meaning in maths. When learners link an algebraic form to a sketch, recall improves. This is central to visualisation in A-Level maths, especially with functions and vectors.
Cognitive Load Theory adds a practical warning for lesson design. Working memory is limited, so cluttered visuals can hinder learning. Clean graphs, consistent notation, and stepwise animations reduce extraneous load.
Effective visualisation is not “more pictures”, but the right representation at the right time, with minimal distraction.
Used well, visual supports can shift effort towards genuine reasoning. A carefully labelled diagram can externalise relationships. That frees capacity for inference, proof, and explanation.
Variation Theory provides a further lens for robust concept formation. It suggests pupils learn best when key features vary systematically. At the same time, irrelevant features should stay constant.
For example, keep the axes and scale fixed while varying a parameter in \(y = ax^2\). Pupils then notice how \(a\) changes curvature and direction. Next, vary the translation in \(y=(x-h)^2+k\) to isolate shift effects.
These theories also shape task sequencing. Start with concrete images, then move to symbolic generalisation. Finish by asking learners to convert between forms without prompts.
In practice, teachers can plan “representation sets” for each topic. Include a graph, an algebraic form, and a short verbal description. Then use variation to compare, contrast, and generalise across examples.
Research on visualisation in A-Level maths consistently links well-designed images with stronger conceptual understanding. Studies in cognitive science show diagrams can reduce working memory load. This frees attention for connections between algebra, graphs and geometry.
Controlled classroom trials often report improved attainment when visual models are embedded in teaching. Gains are usually clearest on questions requiring interpretation, not routine procedure. This suggests visualisation supports meaning-making rather than mere speed.
Transfer also appears more likely when pupils coordinate multiple representations. When learners move between graphs, equations and tables, they build flexible schemas. Such schemas help them apply techniques in unfamiliar contexts.
Misconception reduction is a repeated theme across the evidence base. Visual tasks can reveal errors that symbols may hide. For example, dynamic graphs can expose incorrect assumptions about limits or asymptotes.
However, the research also warns that visuals can mislead without careful scaffolding. Decorative images may distract, while inaccurate scaling can seed new misconceptions. Effective interventions therefore emphasise precision, explanation and guided comparison.
Technology-enhanced visualisation adds further promise in A-Level settings. Dynamic geometry and graphing tools can make variation and invariance visible. Yet outcomes depend on task design and purposeful questioning.
For an accessible external evidence base on learning and misconceptions, see the Education Endowment Foundation guidance on improving mathematics: https://educationendowmentfoundation.org.uk/education-evidence/guidance-reports/maths-ks-2-3. While not A-Level specific, it summarises research principles relevant to representation and understanding. It also supports the careful, structured use of visualisation in A-Level maths.
A growing evidence base suggests that visualisation in A-Level maths supports attainment when it is tightly aligned to the underlying structure of a topic, rather than used as decoration. Classroom trials and quasi-experimental studies commonly report modest but reliable gains in procedural accuracy and conceptual explanations when students are taught to coordinate multiple representations, such as linking graphs to algebraic forms, or interpreting areas and gradients as quantities with units. The strongest outcomes appear when visual models are explicitly connected to formal reasoning: teachers prompt pupils to justify why a diagram “must” behave a certain way, and then translate that justification into symbols.
Research syntheses also indicate that visualisation improves transfer, particularly across contexts that share a deep structure but look different on the surface. For example, students who learn differentiation through both geometric tangent interpretations and symbolic limit definitions are more likely to apply differentiation to unfamiliar modelling tasks, because they recognise the invariant idea of rate of change. Similarly, using dynamic graphing and parameter variation can strengthen understanding of families of functions, supporting flexible problem solving in examinations where a function is presented in a novel form.
Importantly, the evidence cautions that visuals can also stabilise misconceptions if left ambiguous. Common errors include treating a graph as a “picture” of a situation rather than a relationship between variables, or misreading vector and complex-number diagrams as literal spatial objects. Studies show misconception reduction is most effective when learners are asked to predict a visual outcome, check it against the representation, and then reconcile discrepancies through teacher-guided discussion. Over time, this prediction–verification cycle helps students build robust mental models, making visual reasoning a dependable route into formal proof, not a substitute for it.
Sequencing visualisation should be deliberate, not decorative. Begin with concrete experiences, move to pictorial models, then formalise into abstract notation. This progression builds meaning before speed.
Start with Concrete–Pictorial–Abstract (CPA) for new ideas. Use tangible contexts, such as tiles for completing the square. Then sketch the same structure, before writing the algebra.
Routine 1: “See it, Sketch it, Symbolise it”. Give a quadratic and ask learners to build it with area pieces. They draw the arrangement, label lengths, then derive the factorised form. Finish by checking with expansion and graphing.
Routine 2: “One concept, three windows”. Present a function through a table, graph, and equation. Students annotate what stays invariant across all three. Then they translate between forms under timed conditions.
Routine 3: “Misconception spotlight”. Show two near-identical graphs and ask, “What changed?” Learners link the change to parameters, such as stretch or translation. They justify using both words and algebra.
To extend beyond CPA, aim for multi-representational fluency. Students should move flexibly between diagrams, symbols, language, and technology. This is where visualisation in A-Level maths becomes a tool for reasoning, not just illustration.
Plan spacing and retrieval to secure the sequence. Revisit earlier visuals during later topics, such as using gradient triangles in calculus. This supports coherence across the course and reduces cognitive load.
In Pure Maths, practical visualisation can turn abstract symbolism into something students can reason about structurally rather than memorise mechanically. When exploring functions, sketching key features such as intercepts, asymptotes and turning points helps learners see how algebraic form governs behaviour. For instance, viewing a rational function alongside its vertical and horizontal asymptotes makes domain restrictions and end behaviour feel inevitable, not arbitrary. This kind of visual anchoring supports more accurate modelling and reduces common errors when students later manipulate unfamiliar expressions.
Transformations provide another powerful route to conceptual security. Seeing how a curve responds to a translation, reflection or stretch builds an internal “map” between an equation and its geometric effect. When students link y = f(x) to y = f(x − a), y = f(−x) or y = af(x), they begin to recognise transformations as operations on structure, not separate tricks. In this way, visualisation in A-Level maths strengthens the ability to predict and check results, especially when multiple transformations are combined.
Parametric curves are particularly well served by dynamic diagrams. Plotting x(t) and y(t) simultaneously, and tracking direction as t increases, clarifies why the same point can be reached at different parameter values and why eliminating the parameter can obscure important information. Similarly, for limits, a close-up graph around a point reveals what “approaching” means, distinguishing between the value of a function and its limiting behaviour. Visualising left- and right-hand limits also makes discontinuities, removable holes and asymptotic behaviour more intuitive, supporting clearer explanations in written solutions. Taken together, these visual practices build structural awareness that carries into algebraic manipulation and proof.
In calculus, pictures often unlock ideas faster than symbols. Visualisation in A-Level maths helps students link rules to shapes and movement. It also reduces errors caused by treating formulas as isolated facts.
For differentiation, start with a curve and a moving tangent. As the point shifts, the tangent’s gradient changes. The derivative graph then becomes a “slope tracker” across x-values.
A strong classroom example uses \(f(x)=x^3-3x\). Sketch turning points, then predict where \(f'(x)=0\). Students can then confirm the derivative \(f'(x)=3x^2-3\) matches the sketch.
For integration, show area accumulation with thin rectangles. As width shrinks, the approximation becomes a smoother total. The integral graph can be drawn as a running total of signed area.
Try \(g(x)=\int_0^x \sin t \, dt\). The graph rises where \(\sin x\) is positive. It falls where \(\sin x\) is negative. This makes the link between function sign and accumulated area immediate.
The Fundamental Theorem becomes clear when both graphs share one story. The slope of the accumulation curve equals the original function’s height. As Paul’s Online Math Notes states, “we get a very nice relationship between derivatives and integrals.”
To embed this, pair sketches with quick checks. Ask students to estimate areas by eye first. Then verify with anti-derivatives or technology. The goal is conceptual control, not just accurate algebra.
In Mechanics and Statistics, students often struggle with abstract symbols and unfamiliar contexts. Practical visual approaches can turn hard questions into clear stories. This is why visualisation in A-Level maths matters so much.
In Mechanics, vector diagrams help students see direction and magnitude at once. Drawing forces head-to-tail clarifies resultant motion and equilibrium conditions. It also reduces sign errors when resolving components.
Force models make assumptions visible, which strengthens modelling judgement. A free-body diagram highlights what acts on a particle, and what does not. This supports sensible choices about friction, tension, weight, and normal reaction.
Visuals also aid kinematics by linking motion graphs to physical movement. A sketch of velocity and acceleration directions can prevent contradictions. Students can then connect equations to a coherent picture of change.
In Statistics, distribution plots make centre, spread, and skewness easier to grasp. Comparing normal and binomial shapes builds intuition about approximation and suitability. A shaded tail area also links probability to a visible region.
Sampling variability becomes clearer when students picture many samples, not just one. Repeated sample means can be shown as a simulated histogram of outcomes. This helps explain why estimates fluctuate even with fair methods.
Simulation visuals support hypothesis testing and confidence intervals in an intuitive way. Seeing a randomisation distribution makes the p-value feel like a proportion, not a mystery. Students learn that inference is about typical behaviour under a stated model.
In conclusion, visualisation plays a pivotal role in fostering conceptual understanding in A-Level maths education. By integrating multiple representations in maths, including the use of dynamic geometry software and graphical interpretations of calculus, educators can better equip students to tackle complex mathematical challenges. The significance of visualisation in A-Level maths cannot be underestimated, as it transforms abstract concepts into tangible ideas that enhance learning outcomes. As teachers, embracing these strategies will cultivate a deeper engagement with mathematics among students, ultimately preparing them for future complexities. Explore further resources on visualisation techniques in maths education to enrich your teaching practice.
